            APPENDIX 2A



          HELICAL PRODUCT RATINGS, PROPERTIES AND DETAILS



            Chapter 2



          Helical Foundation Systems



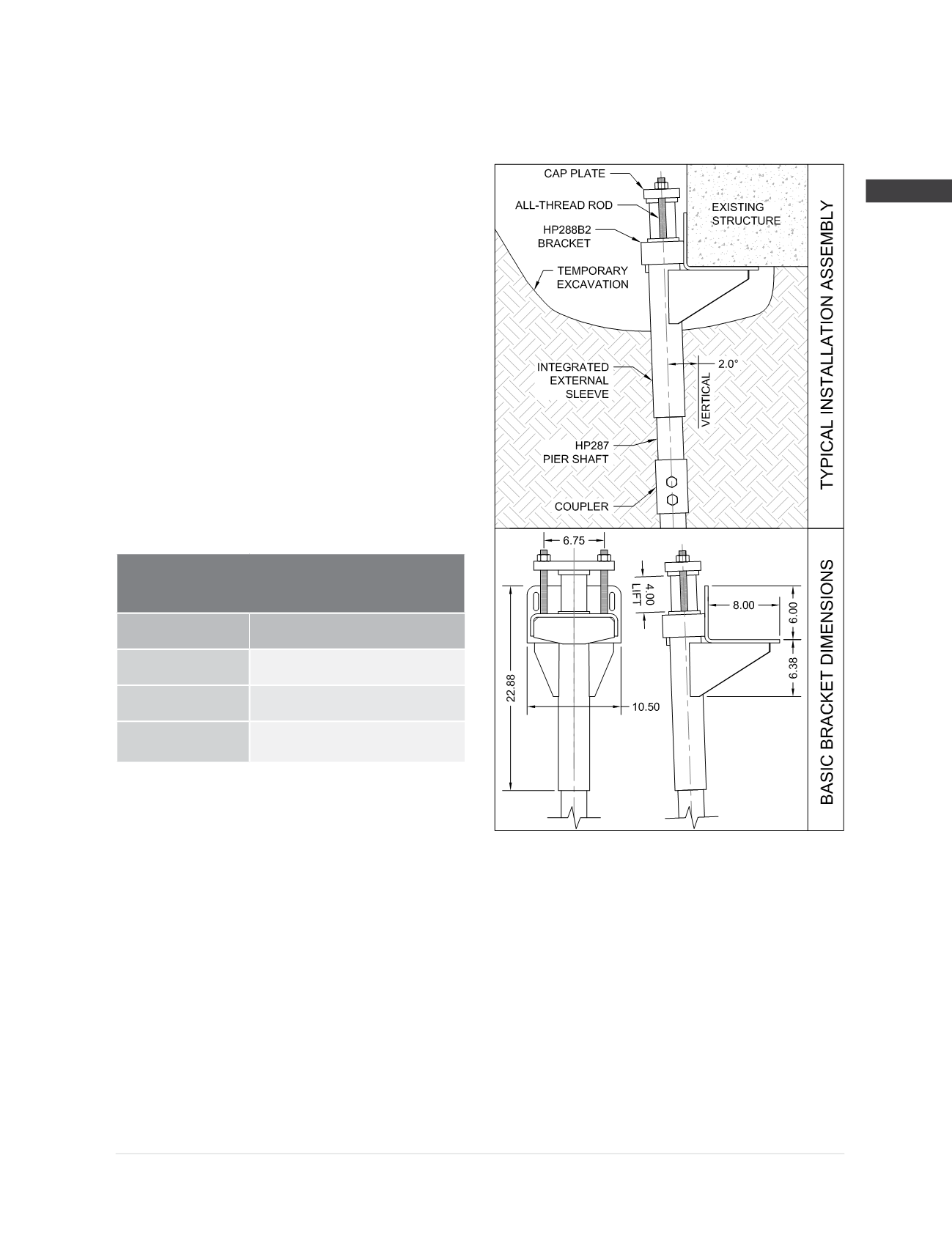

            HP288B2 Bracket Specifications and Capacities



          when used with the HP287 Helical Pile System


          Bracket:


          Weldment manufactured from


          3/8


          ”


          ASTM A36 plate.


          Integrated External Sleeve:


          Ø


          3.500” x 0.216” wall x 20” long


          ASTM A500 Grade B or C


          Yield strength = 50 ksi (min)


          Tensile strength = 62 ksi (min)


          Cap Plate:


          1” x 4.00” x 9.00” ASTM A572 Grade 50


          with confining ring welded to one side.


          Bracket Hardware


          (3)


          :


          (2) -


          Ø


          3/4


          ” x 16” long all-thread rod


          Grade B7, tensile strength = 125 ksi (min)


          Electrozinc plated per ASTM B633


          Bracket Finish:


          Available plain or hot-dip galvanized


          (2)



            Allowable Bracket Capacity




            (4,5,6,7)




            R




            n




            /Ω




            (kips)




            Plain



          21.0



            Plain Corroded




            (1)



          17.2



            Galvanized




            Corroded




            (1,2)



          19.9


          (1)


          Corroded capacities include a 50-year scheduled sacrificial loss in thickness per ICC-ES AC358.


          (2)


          Hot-dip galvanized coating in accordance with ASTM A123.


          (3)


          Optional hardware utilizes similar sized contour (coil) thread made from AISI 1045, tensile strength = 120 ksi. Slightly lower tensile strength


          material does not govern the listed capacities.


          (4)


          Brackets shall be used for support of structures that are considered to be fixed from translation. Structures that are not fixed from


          translation shall be braced in some manner prior to installing retrofit brackets systems.


          (5)


          Allowable capacities consider continuous lateral soil confinement in soils with SPT blow counts ≥ 4. Piles with exposed unbraced lengths or piles


          placed in weaker or fluid soils should be evaluated on a case by case basis by the project engineer.


          (6)


          Concrete bearing assumes a minimum compressive strength (f’c) of 2,500 psi. Local concrete bending and other local design checks should be


          evaluated on a case by case basis by the project engineer.


          (7)


          Listed allowable capacities are for the specific shaft/bracket combination shown. System capacity should also not exceed the installed


          torque-correlated soil capacity (See Shaft Specifications and Capacities).
