Chapter 4
Miscellaneous Structural Support Products
CHAPTER 4
MISCELLANEOUS STRUCTURAL SUPPORT PRODUCTS

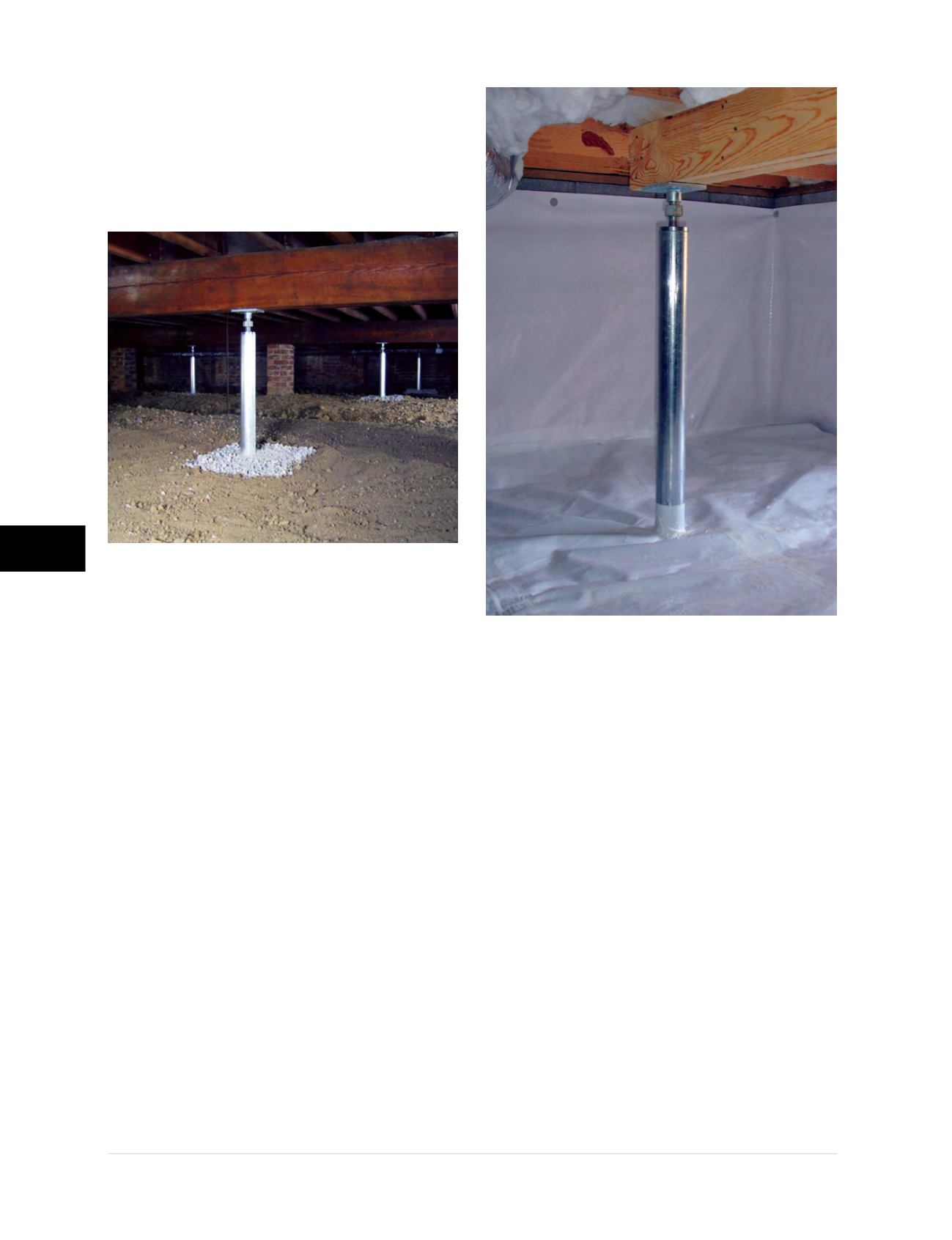

Step 5
– SmartJack System is tightened in
place, stabilizing the beams and potentially
lifting the above floors and walls back toward
level
(Figure 4.5.2.a5)
. The excavation can be
made deeper to set the pre-cast footing below
grade and then cover it with crushed stone.
Step 6
– SmartJack System can be installed
in conjunction with a crawl space liner
(Figure
4.5.2.a6)
.
Figure 4.5.2.a5
Figure 4.5.2.a6
