            APPENDIX 2A



          HELICAL PRODUCT RATINGS, PROPERTIES AND DETAILS



            Chapter 2



          Helical Foundation Systems



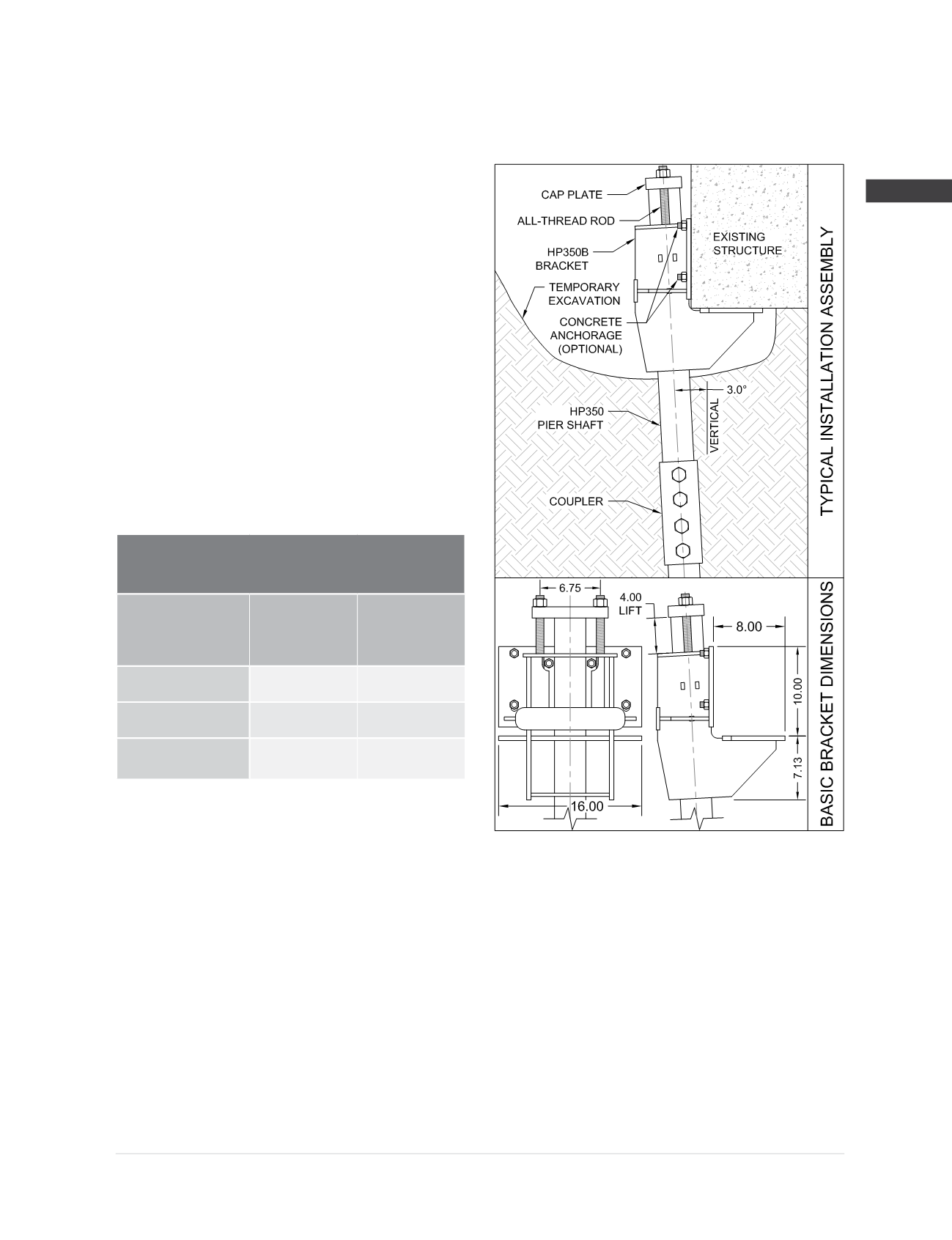

            HP350B Bracket Specifications and Capacities



          when used with the HP350 Helical Pile System


          Bracket:


          Weldment manufactured from


          3/8


          ” and


          1


          ”


          ASTM A36 plate.


          Concrete Anchorage


          (7)


          (Optional):


          (6) -


          Ø


          5/8


          ” x 9” long all-thread rod


          Grade B7, tensile strength = 125 ksi (min)


          Electrozinc plated per ASTM B633


          Cap Plate:


          1-


          1


          ” x 4.00” x 8.50” ASTM A572 Grade 50


          with capture plate welded to one side.


          Bracket Hardware:


          (2) -


          Ø


          7/8


          ” x 18” long all-thread rod


          Grade B7, tensile strength = 125 ksi (min)


          Electrozinc plated per ASTM B633


          Bracket Finish:


          Available plain or hot-dip galvanized


          (2)



            Allowable Bracket Capacity




            (3,4,5,6)




            R




            n




            /Ω




            NO Adhesive




            Anchors




            (kips)




            WITH Adhesive




            Anchors




            (7)




            (kips)




            Plain



          36.5


          45.0



            Plain Corroded




            (1)



          32.6


          40.2



            Galvanized




            Corroded




            (1,2)



          35.4


          43.7


          (1)


          Corroded capacities include a 50-year scheduled sacrificial loss in thickness per ICC-ES AC358.


          (2)


          Hot-dip galvanized coating in accordance with ASTM A123.


          (3)


          Brackets shall be used for support of structures that are considered to be fixed from translation. Structures that are not fixed from translation


          shall be braced in some manner prior to installing retrofit brackets systems.


          (4)


          Allowable capacities consider continuous lateral soil confinement in soils with SPT blow counts ≥ 4. Piles with exposed unbraced lengths or piles


          placed in weaker or fluid soils should be evaluated on a case by case basis by the project engineer.


          (5)


          Concrete bearing assumes a minimum compressive strength (f’c) of 2,500 psi. Local concrete bending and other local design checks should


          be evaluated on a case by case basis by the project engineer.


          (6)


          Listed allowable capacities are for the specific shaft/bracket combination shown. System capacity should also not exceed the installed


          torque-correlated soil capacity (See Shaft Specifications and Capacities).


          (7)


          Specified anchors installed to a minimum embedment of 7.5” into concrete with a minimum compressive strength f’c = 2,500 psi utilizing


          Simpson AT adhesive.
